CARME-218SBPW | CARME Series Dual 18" 3200W PA/DJ Powered Subwoofer w/ DSP, 2-Channel Class-D, 4" Voice Coil, Birch Plywood, Bass Reinforcement, Black
Experience earth-shaking bass with the CARME Series CARME-218SBPW subwoofer, which features dual 18“ high-performance woofers, each with a 4” voice coil and 100 oz magnet. This combination delivers a power capability of 1600W continuous and 3200W peak power. With the integrated high-power 2-channel amplifier (bi-amped), each channel delivers 800W continuous and 1600W peak power ensuring your audience doesn’t miss a beat.
Effortlessly integrate the CARME-218SBPW subwoofer into your PA system using its 2 XLR/1/4“ combo inputs and 2 balanced XLR outputs. The built-in digital signal processor (DSP) and switchable high-pass filter (HPF) allow quick and simple connectivity with a full-range PA speaker. Built to endure the toughest demands of touring, the CARME-218SBPW is built with high-quality birch plywood enclosure, a textured painted professional finish, and a perforated front grille. The high-quality birch plywood enclosure is designed to resist distortions and unwanted vibrations, even at high volume output levels, allowing for a bass performance that remains clear, focused and punchy.
From energizing parties and DJ gigs to enhancing weddings, conferences, theaters, clubs, schools auditoriums, churches, and more, the CARME-218SBPW powered subwoofer is your go-to solution for high-powered exceptional bass reinforcement in any setting, even including home theater systems. Feel the power, elevate your sound and leave your audience with a lasting impression!
- CARME SERIES ACTIVE SUBWOOFER: The CARME-218SBPW subwoofer is powered by an integrated class-D amplifier and features dual 18“ woofers with 4” voice coils and 100 oz magnets, delivering 1600W continuous and 3200W peak power.
- DUAL CHANNEL BI-AMP: The 18“ woofers are driven with a high-power 2-channel amplifier (bi-amped), with each channel delivering 800W continuous and 1600W peak power.

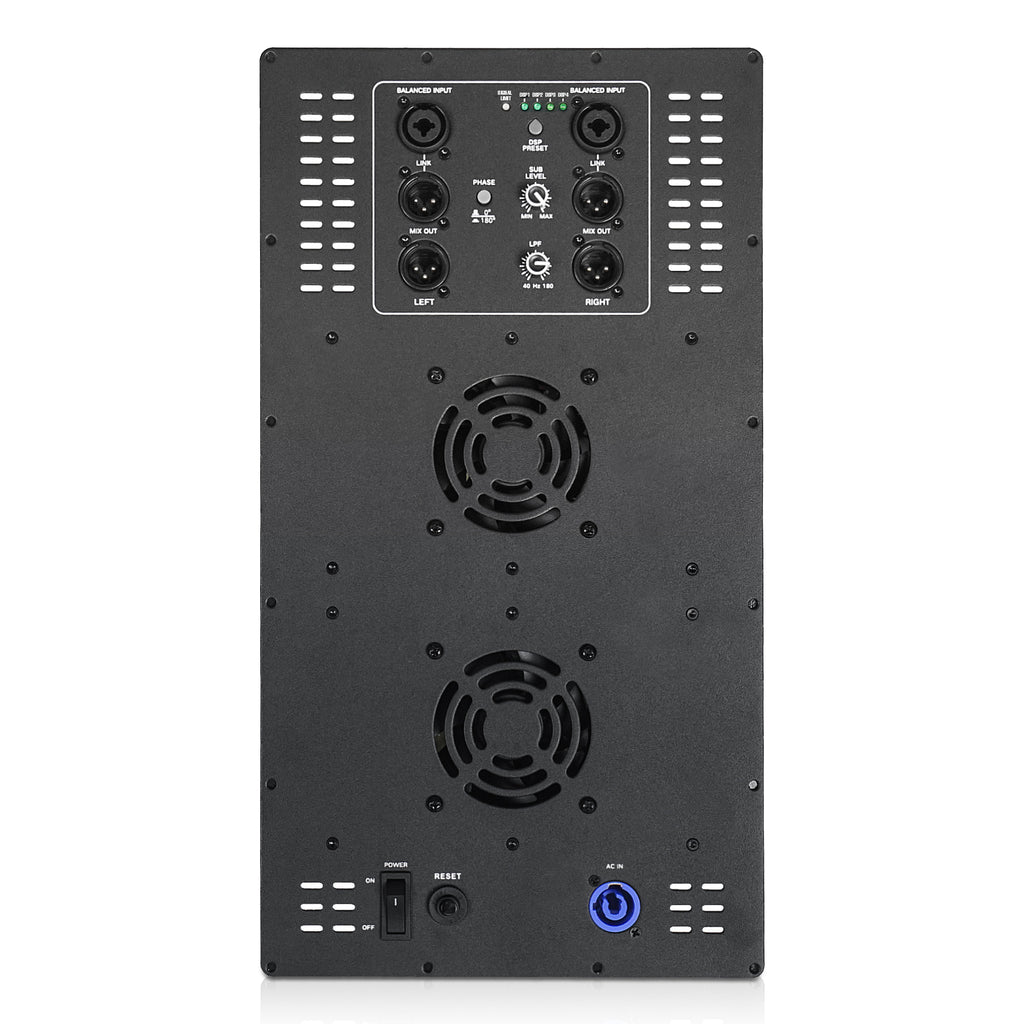

- XLR & 1/4” INPUT - XLR OUTPUT: Seamlessly integrate the CARME series subwoofer with its (2) XLR-1/4“ combo input and balanced XLR outputs. With the built-in digital signal processor (DSP) and a switchable high-pass filter (HPF), it ensures easy connectivity with full-range PA speakers.
- TOUR-LEVEL CRAFTSMANSHIP: Built with high-quality birch plywood enclosure designed to resist distortion even at high output levels, for a clear and punchy bass.
- VERSATILE APPLICATIONS: The CARME-218SBPW dual 18“ subwoofer is the go-to solution for powerful bass reinforcement, enhancing any setting including weddings, places of worship, conferences, clubs, theaters and more.
|Active / Passive||Active|
|Frequency Range||35 Hz - 350 Hz|
|Frequency Response||38 Hz - 350 Hz|
|SPL Max||134 dB|
|Configuration||Dual 18” 2-way powered subwoofer w/ DSP|
|Transducer||LF: 2 x 18" woofer, HF: --|
|Impedance||2 x 8Ω nominal (bi-amp)|
|Power Handling||1600W Continuous (2 x 800W) / 3200W Peak (2 x 1600W)|
|Enclosure Material||High-grade 100% birch plywood|
|Grill & Rigging Component||Steel with anti-corrosion coat|
|Input||2 x 1/4" & XLR combo|
|Output||2 x XLR (full-range/high-pass)|
|Signal Processing||DSP: presetting EQ (LPF), polarity switch|
|Control||Volume, polarity, LPF|
|Voltage||100V-240V (50-60 Hz)|
|High Frequency Driver Parts#||--|
|Low Frequency Woofer Parts#||STLF-1804-8|
Dimension & Weight
|Product Width (in.)||40.9"||Package Width (in.)||46.3"|
|Product Height (in.)||20.0"||Package Height (in.)||26.2"|
|Product Depth (in.)||21.7"||Package Depth (in.)||27.0"|
|Product Weight (lb.)||180.9 lbs||Package Weight (lb.)||185.9 lbs|
|Manufacturer Warranty||1 Year|
