CARME-15MM-R | REFURBISHED: CARME Series 15" Multipurpose Loudspeaker/Monitor, Coaxial Compression Driver for Installation, Live Sound, Karaoke, Bar, Church
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- REVIEWS
Refurbished Condition: 100% testing and function is in good condition while outside box worn out and small cosmetic dents. cosmetic damages will vary, including but not limited to, damaged or cracked, bent ears, scratches, dents, etc.

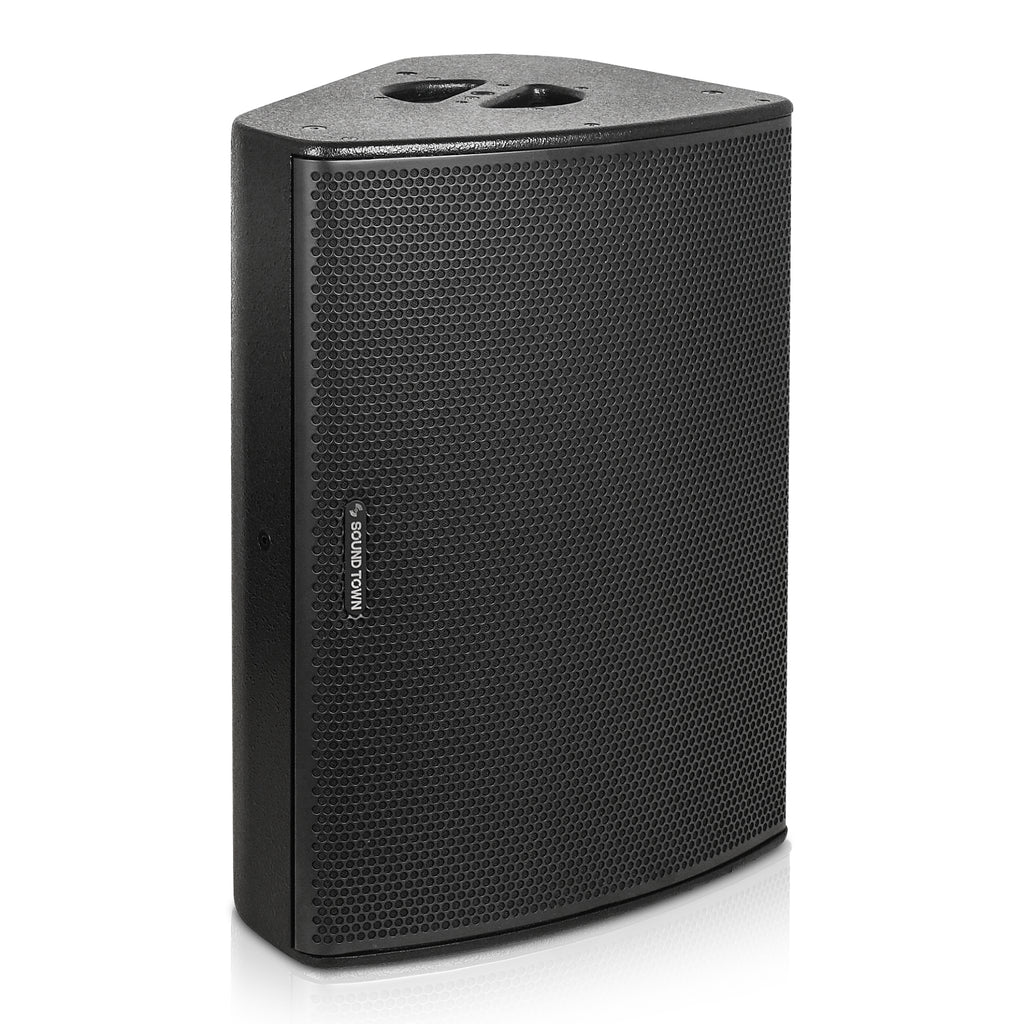

The Sound Town CARME-15MM is a passive 400 watts multipurpose loudspeaker. Equipped with a customized high-efficiency coaxial driver, which includes one 15" woofer and one 1-3/8" compression driver at the center, it delivers clear and stellar sound with high sensitivity. Characterized by smooth, flat frequency response coupled with low distortion, the even conical coverage is great for sound feedback on your stage.

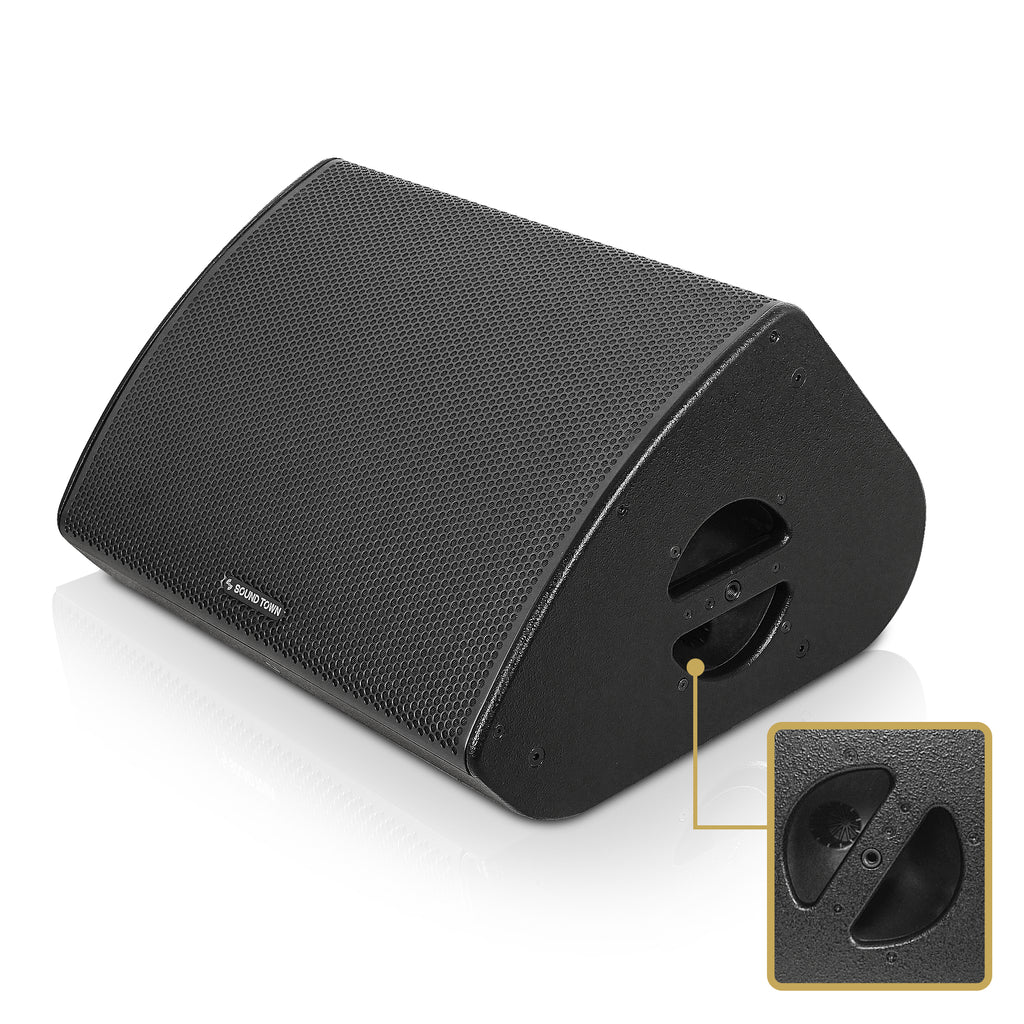

The CARME-15MM has a compact design featuring a low profile that does not visually dominate the stage. With 100 degrees conical coverage angle, it can be used as a full-range main speaker, a floor monitor, or a wall-mounted installation speaker by rotating the cabinet. With the Sound Town CARME-15MMUB U bracket (sold separately), the CARME-15MM can be surface mounted against a wall, ceiling or corner, offering great flexibility for various applications. Even better, with the Sound Town STSD-71B speaker stand (sold separately), it’s ideal perfect for live stages, churches, bars, restaurants, meeting rooms, auditoriums and more.
- MULTI-PURPOSE: The professional loudspeaker features a 100-degree conical coverage angle, making it suitable for various applications, including as a full-range main speaker, a floor monitor, or for wall-mounted installations. The cabinet can be adjusted to different angles based on the U-bracket. With two SPEAKON input connectors, connecting it to your PA system is simple and convenient.
- MULTI-POSITION: With optional CARME-15MMUB wall mount bracket and STSD-71B speaker stand, it is perfect for both permanent or portable applications.
- EXCEPTIONAL SOUND AND EVEN COVERAGE: Featuring a specially designed high-efficiency coaxial driver that includes a 15" woofer and a 1-3/8" compression driver at the center, the CARME-15MM offers outstanding audio performance.
- HIGH SENSITIVITY IN A COMPACT DESIGN: The stage monitor’s high sensitivity allows you to achieve a high output level using a small amplifier. It handles 400W RMS / 800W program output (8-ohm), and its low profile cabinet design ensures it doesn’t visually dominate stages or installation venues.
-
ROBUST DESIGN: The textured and painted birch plywood offers excellent durability and stability, complemented by a heavy-duty metal grille. Its compact size ensures easy transportability.
Specifications
Model | CARME-15MM |
Active / Passive | Passive |
Frequency Range | 45 Hz - 20kHz |
Frequency Response | 52 Hz - 20kHz |
Sensitivity | 101 dB |
SPL Max | 132 dB |
Dispersion | 100° conical |
Configuration | 15" multipurpose loudspeaker |
Transducer | LF: 1 x 15" woofer HF: 1 x 1-3/8" compression driver (coaxial) |
Voice Coil | 3" |
Magnet | 70 oz |
Impedance | 8Ω |
Power Handling | 400W RMS / 800W Peak |
Enclosure Material | High-grade 100% birch plywood |
Mounting Hardware | CARME-15MMUB U bracket / STSD-71B stand mount (sold separately) |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | Speakon |
Output | Speakon |
Signal Processing | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
Crossover Parts# | -- |
High Frequency Driver Parts# | -- |
Low Frequency Woofer Parts# | -- |
Dimension & Weight
Product Width (in.) | 22.6" | Package Width (in.) | 19.9" |
Product Height (in.) | 16.9" | Package Height (in.) | 26.1" |
Product Depth (in.) | 14.3" | Package Depth (in.) | 17.2" |
Product Weight (lb.) | 42.6 lbs | Package Weight (lb.) | 48.2 lbs |
Warranty/Certifications
Manufacturer Warranty | 180 Days (6 Months) |
