SWM15-PROS | Wireless Microphone Karaoke Mixer System w/ HD ARC, Optical, AUX, Bluetooth, Selectable Frequencies - Supports Smart TV, Sound Bar, Media Box, Receiver

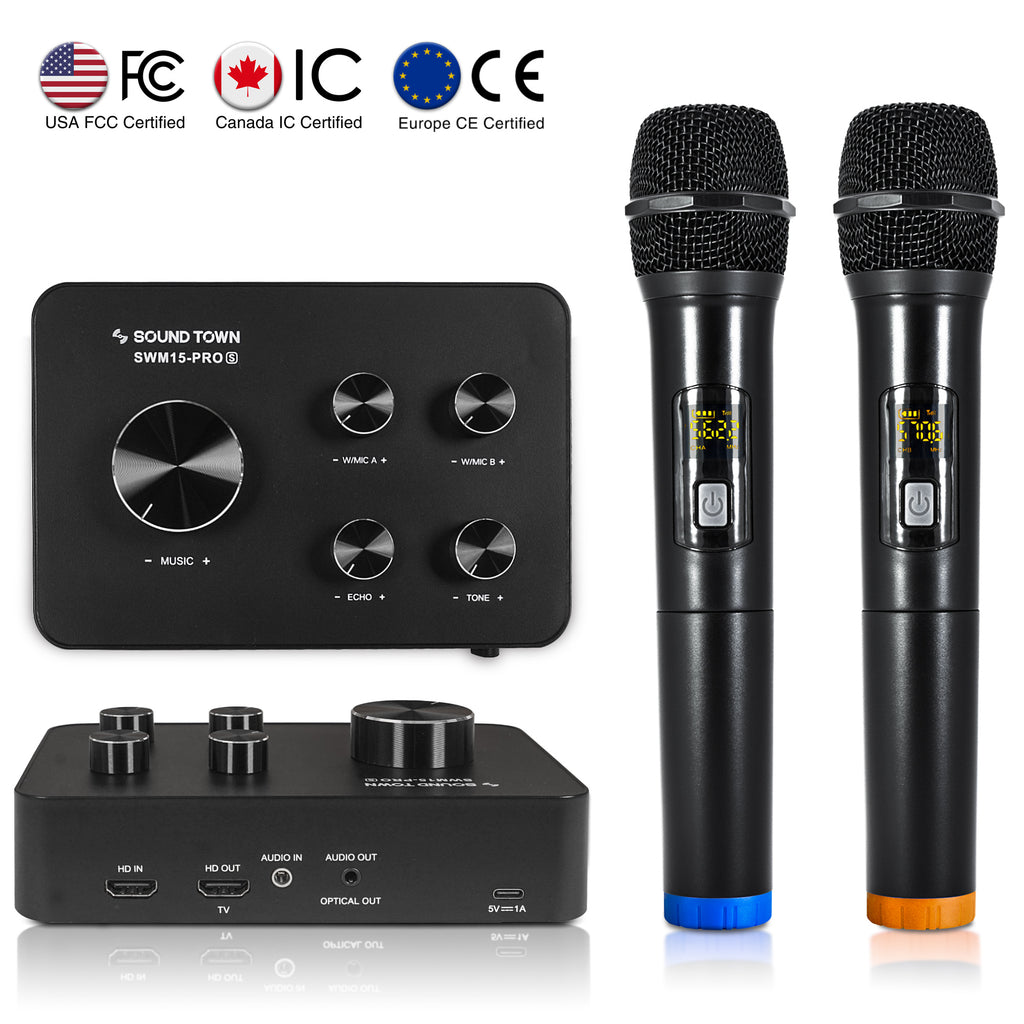

The SWM15-PROS mixer blends microphone signals with music directly on the unit, without requiring an external mixer. It comes with two wireless microphones, each offering 8 selectable UHF frequencies per channel for interference-free performance, and supports up to two additional wireless microphones (SWM01-U2HH, not included). Rotatory control knobs allow adjustment of music, microphone, echo, and tone levels. The VOCAL CUT button reduces vocal tracks in music, making karaoke performance more engaging. This system is ideal for karaoke, DJ setups, and house parties.

The SWM15-PROS mixer blends microphone signals with music directly on the unit, without requiring an external mixer. It comes with two wireless microphones, each offering 8 selectable UHF frequencies per channel (16 channels total) for interference-free performance, and supports up to two wired dynamic microphones (not included). Rotatory control knobs allow adjustment of music, microphone, echo, and tone levels. The VOCAL CUT button reduces vocal tracks in music, making karaoke performance more engaging. This system is ideal for karaoke, DJ setups, and house parties.

Depending on the input options on the soundbar or home receiver, the Audio Out port functions as either an AUX or optical output. Both a 3.5mm AUX audio cable and a mini Toslink-to-Toslink optical cable are included. The dual-purpose output allows the SWM15-PROS to connect to virtually any soundbar or receiver, including models from Bose (300/500/700), Samsung, Vizio, and more.

Versatile Compatibility Options

Smart TV Smart TV ▶ SWM15-PRO ▶ Speakers	Laptop / PC Laptop/PC ▶ SWM15-PRO ▶ TV	Streaming Device Streaming Device ▶ SWM15-PRO ▶ TV	Smart Phone / Tablet Tablet/Smart Phone ▶ HDMI Adapter ▶ SWM15-PRO ▶ TV

Works with Smart TV

With a built-in HD ARC (Audio Return Channel) connector on the SWM15-PRO mixer, it allows you to connect to almost any smart TV through an HDMI cable. Simply plug the HDMI cable to the HD ARC port on your Smart TV and plug the other end of the HDMI cable to the HD OUT (ARC) port on the SWM15-PRO mixer. The smart TV is required to have an HDMI ARC port and the HDMI cable is not included.

IMPORTANT!

1. Please check the connection instructions under the “Support” tab prior to purchasing.
2. If you intend to use a smart TV as the input source, you will need external speakers (not included in the package) to connect the TV to the SWM15-PRO receiver. Please check the connection diagram for more information.
3. For certain TV models, you will need to check your TV’s ARC function is enabled and choose external speakers in the TV settings before you use this product via the ARC connection. Please check with your TV manufacture on how to enable this function.
4. Turn on the CEC settings on your TV.
5. Make sure the audio format is set to PCM.

Easy Setup

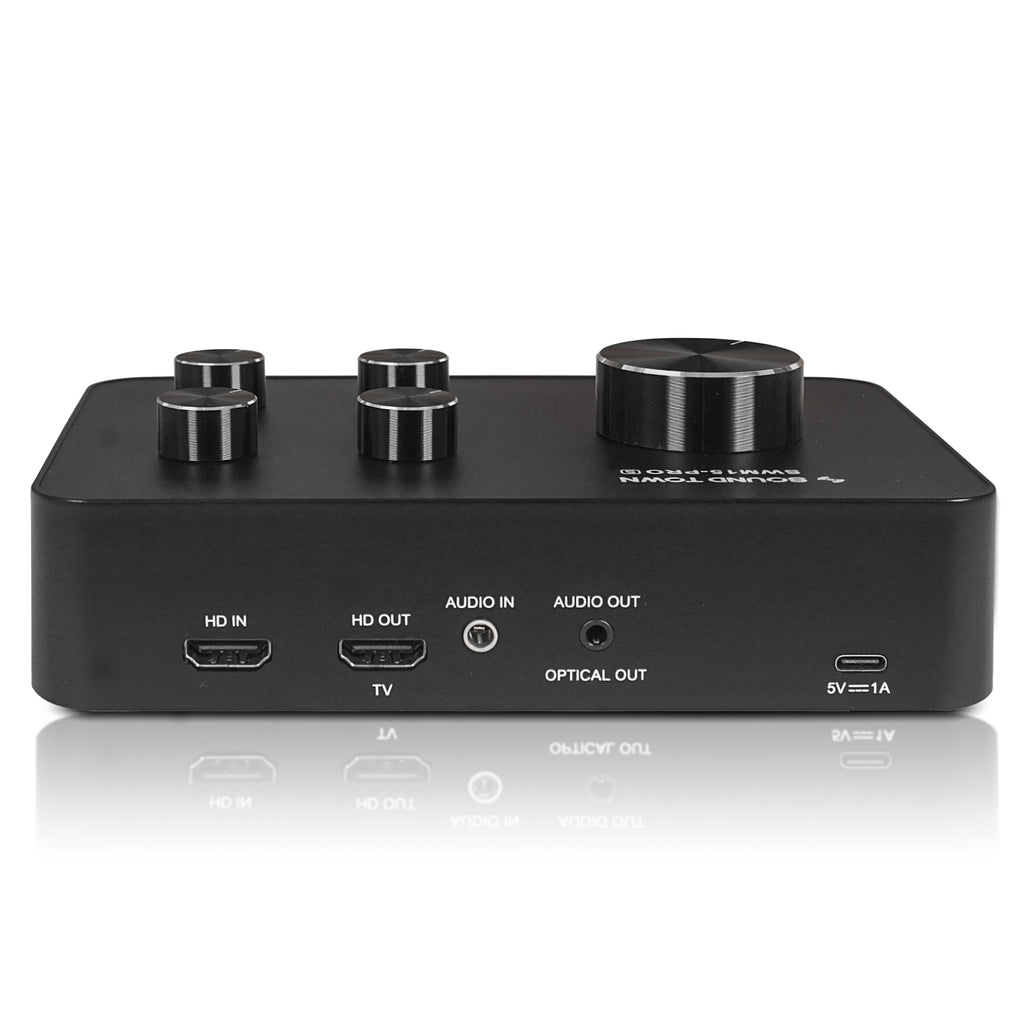

• VERSATILE COMPATIBILITY: The SWM15-PROS features multiple audio input/output ports, including an HD input and HD Audio Return Channel (ARC) output, as well as a 3.5mm audio input and 3.5mm/optical combo output, making it compatible with a variety of devices such as smart TVs (HD ARC required), home receivers, and soundbars. The Bluetooth (BT) button allows quick ON/OFF control for audio input sources, enabling connection with laptops, smartphones, tablets, and iPads. A dedicated Type-C port provides power for the unit.

• HD AUDIO RETURN CHANNEL (ARC) FUNCTION: Refer to the included pictures for CEC/PCM setting guidance. Ensure the TV’s CEC is enabled and PCM is selected as the audio format under audio settings. The HD ARC port on the SWM15-PROS karaoke mixer extracts audio from the TV, blends music and vocals, and sends the mixed signal to a soundbar or amplifier (HD cable not included).

• AUX/OPTICAL COMBO: The Audio Out port functions as either an AUX (3.5mm) or Optical output using the included AUX-to-Optical adapter. It supports a wide range of soundbars, including Bose 300/500/700, Samsung, Vizio, and others.

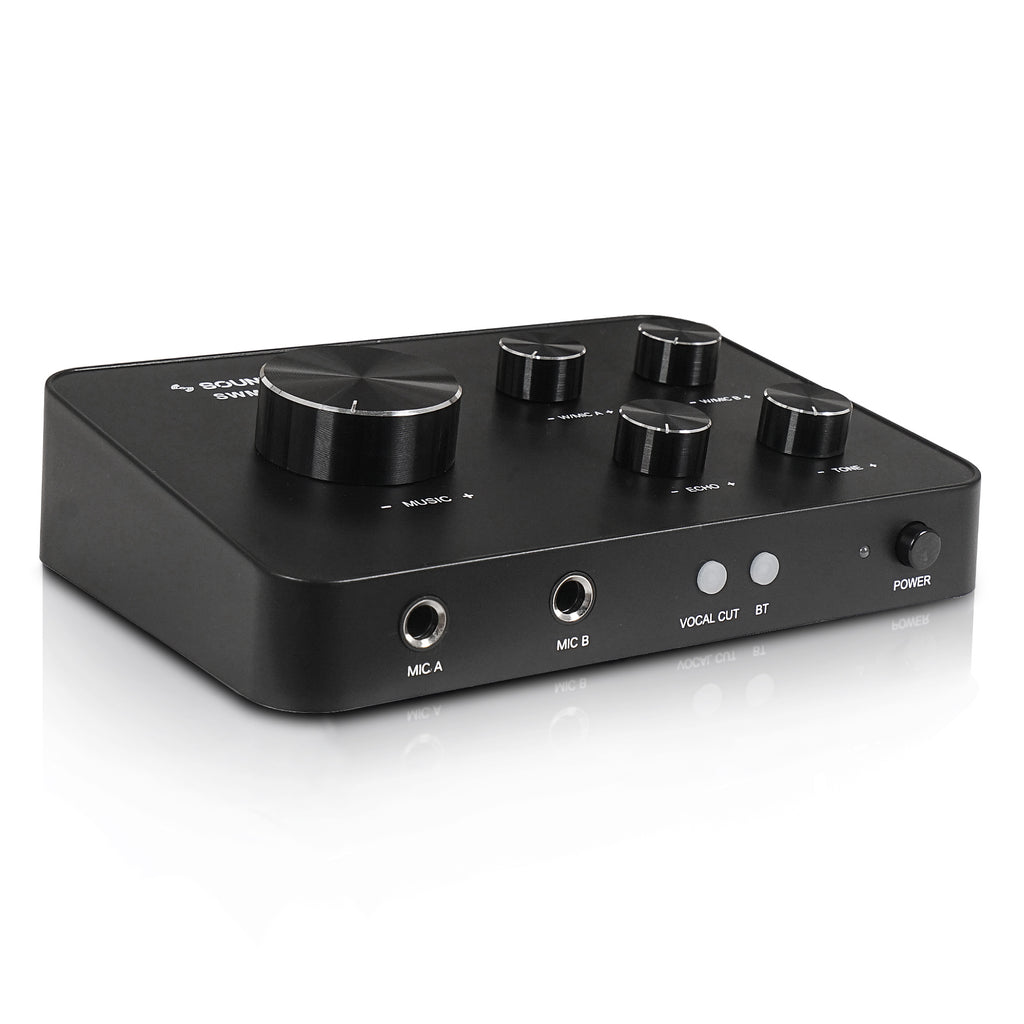

• EASY-TO-SETUP: The SWM15-PROS mixer provides independent volume knobs for the two included wireless microphones (each offering up to 8 selectable frequencies), while echo and tone controls affect both simultaneously. The system supports an operating range of up to 100 feet line-of-sight, and a VOCAL CUT button reduces vocal tracks in music, making karaoke performance more convenient. Up to two additional wireless microphones (SWM01-U2HH, not included) can be integrated via the external microphone port.

• CONNECTION DIAGRAM: 1. To connect via TV, follow the “How to Connect” section on the diagram and the "IMPORTANT" instructions in the pictures to enable the TV’s HD ARC function and select external speakers in the TV settings. 2. If microphone volume is low, first increase the volume on the TV, soundbar, and receiver. Then, on the SWM15-PROS mixer, set the MUSIC knob low-mid level (20–30%) and the W/MIC knob to maximum.


Replacement Microphone: SWM15-HH

▶ If you are having trouble with your microphones, first we need to clarify which batch your microphone is.

BATCH 3: Single Button Microphone


BATCH 2: Dual Button Microphone
We have two versions of the dual button microphone but the older version (Batch A) has been discontinued. Therefore, to ensure your dual button microphone is truly Batch B, please test the microphone by pressing the set & power button simultaneously while the microphone is turned on and do not let go until the CHA or CHB blinks repeatedly. If the CHA/CHB does not blink repeatedly, you may have a Batch A microphone--please contact us.

BATCH 2:

1. To pair your receiver to the microphone:

• Turn off the microphone and receiver.
• While the microphone is turned OFF, press the set & power button simultaneously. Do not let go until the pairing signal on the top-right of the microphone LED display begins to flash.
• While the pairing signal on the microphone LED display is still flashing, turn on the receiver.
• The light on the receiver should show blue/purple once it is connected correctly. If the light on the receiver is signaling red, it is not connected.

BATCH 3:

1. To pair your receiver to the microphone:

• Turn off the microphone and receiver.
• While the microphone is turned OFF, long-press the power button on the microphone and do not let go.
• When the display on the microphone flashes “1d”, immediately quick-press the power button on the microphone and then immediately release the power button. The microphone’s pairing signal on the top-right corner of the LED display will begin to flash.
• While the pairing signal on the microphone LED display is still flashing, turn on the receiver.
• The light on the receiver should show:
  SWM15-PRO: Blue/purple once it is connected correctly. If the light on the receiver is signaling red, it is not connected.
  SWM16-PRO: The RF1/RF2 light on the receiver should show green once it is connected correctly.

"How do I connect the SWM15-PROs to my Sonos soundbar?"

(Answer:) The TV HDMI ARC needs to be connected to the SWM15-PROS (HD OUT ARC) in order for the mixer to mix the music source and microphone together (if your music source is coming from your TV).

SWM15-PROs OPTICAL OUT -> Mini Optical Adapter (#1 below)
Mini Optical Adapter -> Optical to HDMI Adapter (#2 below) -> HDMI Cable -> Soundbar HDMI IN

1. Mini Optical Adapter




2. Optical to HDMI Adapter

• Choose input channel on the TV to the correct HDMI input
• Choose input channel on the soundbar to HDMI
• Turn up all volume knobs on the SWM15-PRO mixer (MUSIC 50%, MIC 100%)
