STCA360-STCS6 | 6-Zone 70V/100V Commercial Amplifier and 6 in-Ceiling 6” Installation Speaker System, for Restaurants, Bars, Cafes, Schools, Churches, White











- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS
This Sound Town STCA360-STCS6 system includes:
- (1) STCA360-6Z 360W 6-Zone 70V/100V Commercial Power Amplifier

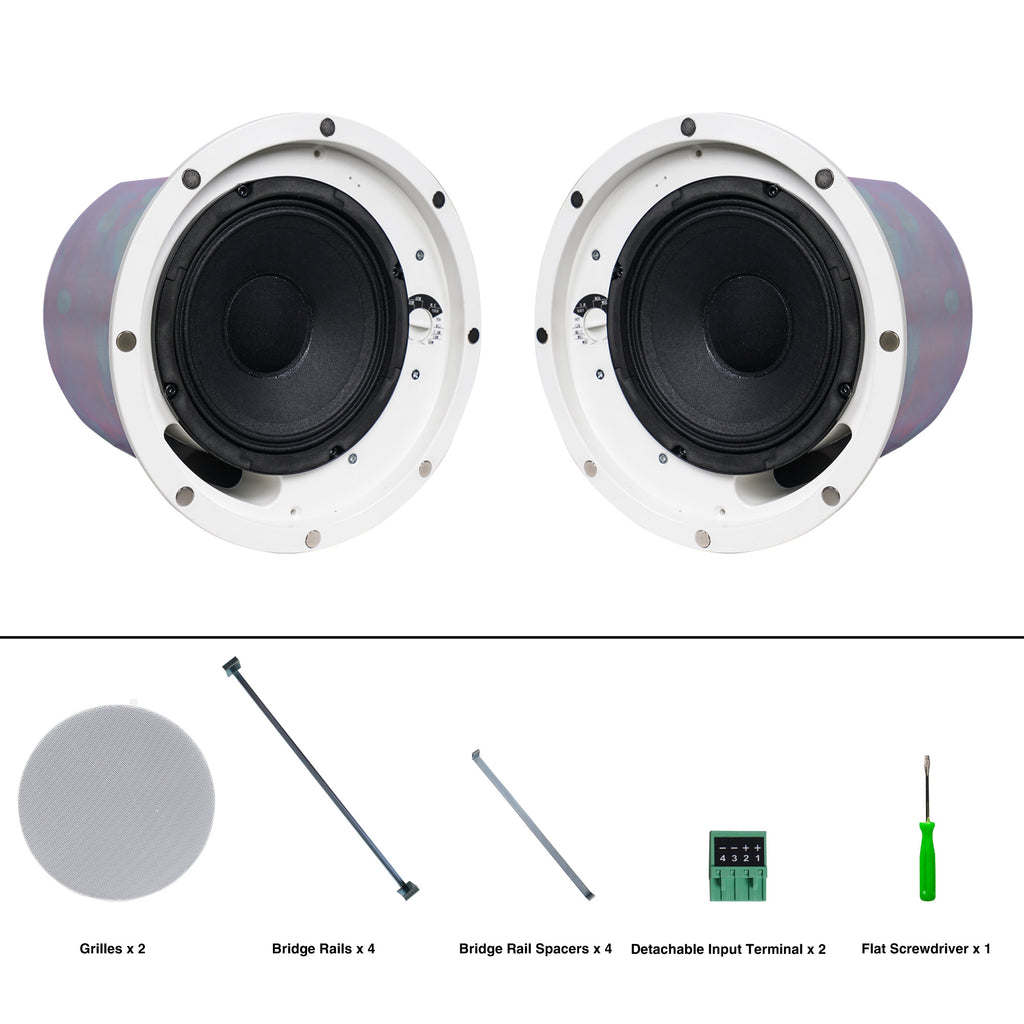

- (3) STCS-6 Pair of 6” Passive Coaxial In-Ceiling Installation Speakers
The Sound Town STCA360-6Z is a 6-zone 19” rack mountable commercial power amplifier. It comes with 360W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Better yet, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse. The multi-zone power amplifier comes with 2 sets of RCA inputs, 3 mic inputs, and Bluetooth, USB, FM radio and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal. Its versatile input and output options allows you to easily set this up in a variety of multi-room applications. Each of the 3 mics input has echo control all 6 zones have separate volume knobs for easy adjustment.

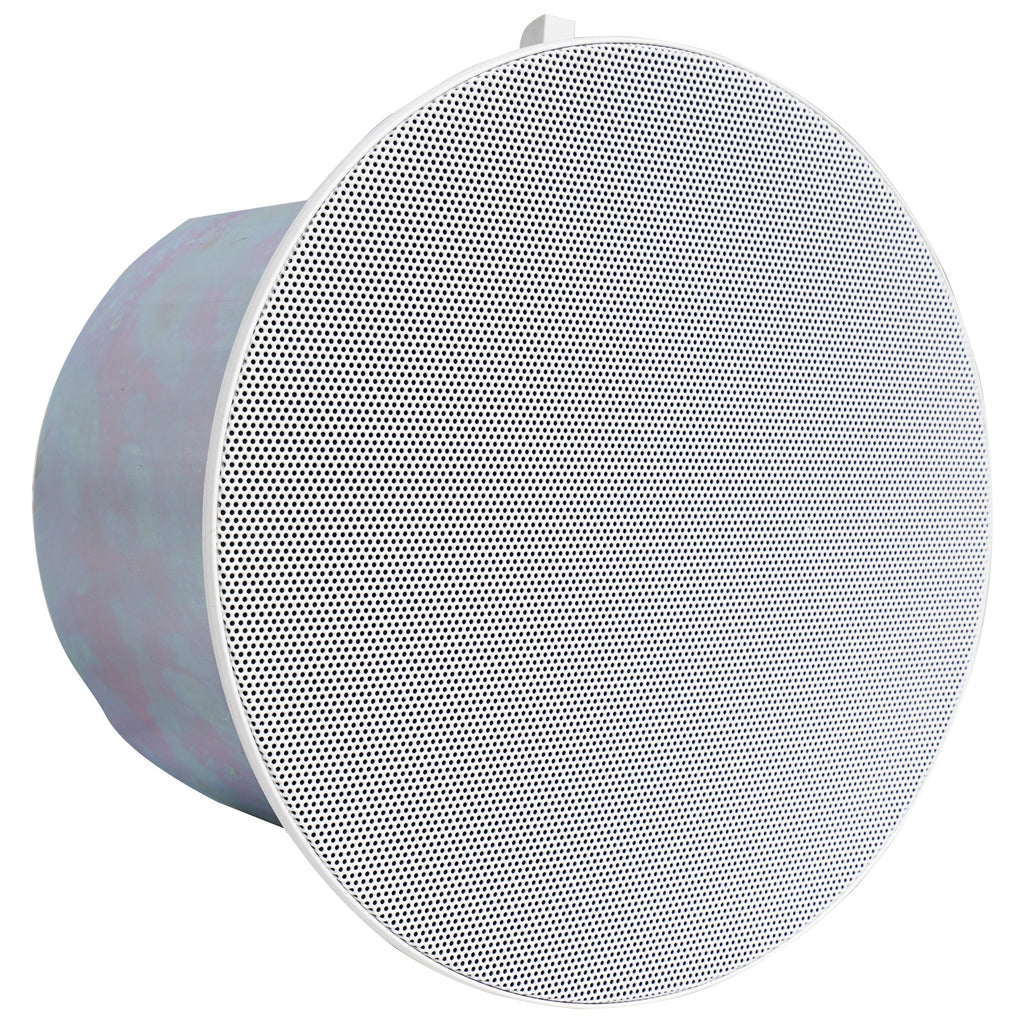

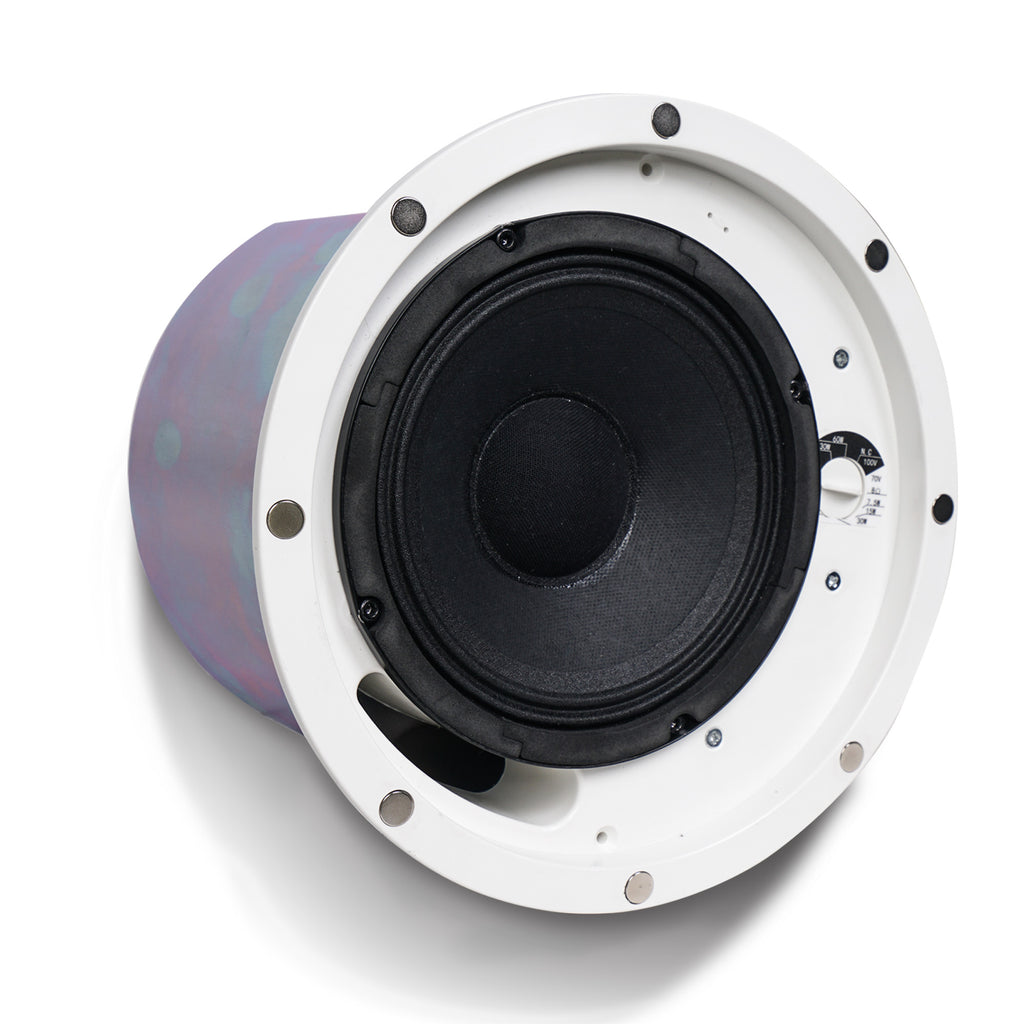

The Sound Town STCS-6 in-ceiling speaker is a 2-way full range installation speaker. Each of the 6 speaker comes with one 6” woofer, one 1” titanium compression driver and 80W RMS, 320W peak (8-ohm) power handling capability. It has a generous 120-degree conical coverage, 70-20KHz bandwidth and ensures excellent sound quality. It is 70V/100V/8-ohm switchable and comes with white grille and can easily blend with their surroundings. With white painted grille, steel backcan and tile rails for fast installations, it is ideal for commercial audio installation and small to medium-sized spaces including restaurants, meeting rooms, schools, retail stores, and casinos.
- The PA system includes 1 x 6-zone 70V/100V commercial amplifier and 6 x 6” in-ceiling speakers
- The amplifier comes with 360W RMS output and can be split into 6 zones
- The amp features versatile inputs with 2 sets of RCA inputs, 3 mic inputs (including 1 priority mic), USB input, FM radio tuner and Bluetooth; each of the 3 mics has repeat, speed, echo control
- With one 6” woofer, one 1” titanium compression driver, the in-ceiling speaker has a generous 120-degree conical coverage, 70-20KHz bandwidth and ensures excellent sound quality
- Each speaker includes a transformer for a 70V/100V line distribution system and comes with comes with white painted grille, steel backcan and tile rails for fast installations
Specifications
Model | STCS-6 |
Active / Passive | Passive |
Frequency Range (+/- 3dB) | 90 Hz - 18k Hz |
Frequency Response (+/- 10dB) | 70 Hz - 20k Hz |
Sensitivity | 91 dB |
SPL Max | 110 dB |
Dispersion | 120° Conical |
Configuration | 6" passive coaxial in-ceiling/in-wall speakers |
Transducer | LF: 1 x 6", HF: 1 x 1" (coaxial) |
Impedance | 8Ω |
Power Handling | 80W RMS / 160W Program / 320W Peak |
Enclosure Material | Steel backcan |
Mounting | Support bridge rails |
Finish | White painted grille |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | 4-pole Euroblock (Parallel) |
Output |
4-pole Euroblock (Parallel) |
Control | 70V /100V / 8-ohm tap switch |
Indicator | -- |
Voltage | -- |
Model |
STCA360-6Z |
Output Power | 360W RMS |
Output Type | 70V/100V/4~16Ω |
MIC Input | 3mV, 600 Ω |
Line Input |
200mV, 10k Ω |
Freq. Range | 50 Hz~20k Hz |
Distortion | 0.5% (1k Hz) |
S/N Ration AUX | 88 dB |
S/N Ration MIC | 116 dB |
Voltage |
AC110V~230V |
Fuse | 10A 125V |
Dimension & Weight
Model | STCS-6 | STCA360-6Z |
Product Width (in.) | ø9.84" | 19.0" |
Product Height (in.) |
7.40" |
3.5" |
Product Depth (in.) | --" | 15.3" |
Product Weight (lb.) | 9.7 lbs | 26.0 lbs |
Package Width (in.) | 25.6" | 20.9" |
Package Height (in.) | 9.1" | 6.9" |
Package Depth (in.) | 11.6" | 18.7" |
Package Weight (lb.) | 25.3 lbs | 32.8 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
