CARPO-V4W15 | PA System with Two 500W Passive Column Line Array Speakers and One 15” 1600W Powered Subwoofer, White
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- DOWNLOADS
- REVIEWS

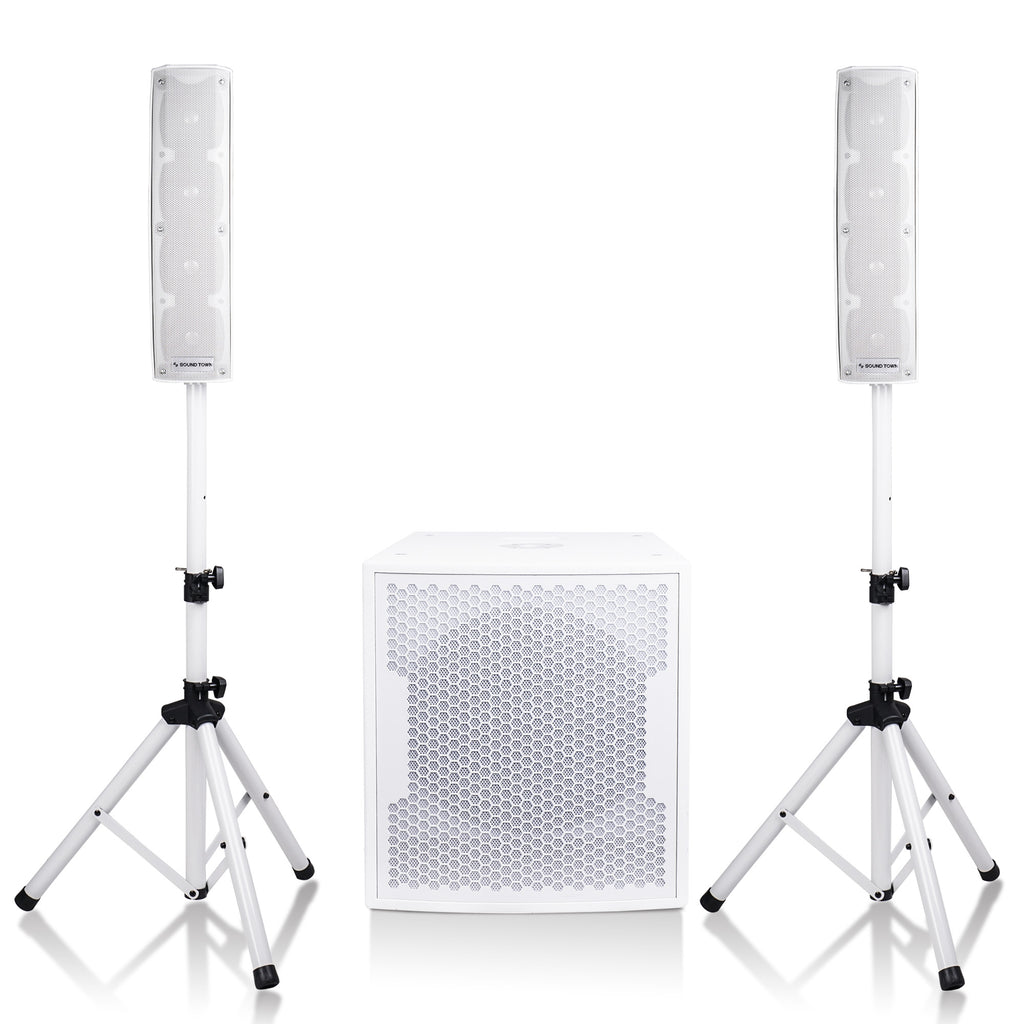

The Sound Town CARPO series CARPO-V4W15 speaker set includes:
- (1) CARPO-V4W Pair of Passive Column Array Speakers w/ 4 X 4“ Woofers, Wall-Mount Brackets, White
- (1) CARPO-15SWPW 15” Powered Subwoofer
- (1) STSD-48W-PAIR Speaker Stands
The 15" subwoofer has a built-in 3-channel amplifier which generates 800W continuous, 1600W peak power output; it also has two speaker outputs which deliver 250W continuous and 500W peak power per channel. It allows you to easily daisy chain the two passive column speakers and makes the setup a breeze.
Each of the column speaker has four 4” woofers and four compression drivers, together with the 15” powered subwoofer, the PA speaker system produces punchy bass and crisp highs without distortion even at earth shaking volume. It is a great-sound and budget-friendly speaker set for meeting rooms, courtyards, churches, restaurants, stages and any other small to medium venues.
- ALL-IN-ONE SOLUTION: The speaker set includes two 4 X 4” full-range column speakers (CARPO-V4W speaker set), one 15” powered subwoofer with two speaker outputs (CARPO-15SWPW subwoofer), two speaker stands and two 9-feet speakon to speakon cables.
- MASSIVE POWER: The 15" subwoofer has a built-in 3-channel amplifier which generates 800W continuous, 1600W peak power output; it also has two speaker outputs which deliver 250W continuous and 500W peak power per channel.
- EASY SET-UP: The passive PA speaker set CARPO-V4W is optimized and works great with the Sound Town CARPO-15SWPW subwoofer. The CARPO-15SWPW subwoofer comes with 2 satellite speaker outputs, which allows you to easily daisy chain the two passive column speakers and makes the setup a breeze.
- SUPERB SOUND QUALITY: Each of the column speaker has four 4" woofers and four compression drivers, together with the 15" powered subwoofer, the PA speaker system produces punchy bass and crisp highs without distortion even at earth shaking volume.
-
VERSATILE APPLICATIONS: A professional-grade full range column speaker set for live event, vocal, speech, churches, schools, meeting rooms, courtyards, restaurants, stages and any other small to medium venues; the white enclosure is more than beautiful, it comes with sturdy construction and holds up touring applications.
Specifications
Model | CARPO-V4W | CARPO-15SWPW |
Active / Passive | Passive | Active |
Frequency Range | 75 Hz - 20 kHz | 40 Hz - 300 Hz |
Frequency Response | 80 Hz - 20 kHz | 45 Hz - 500 Hz |
Sensitivity | 96 dB | 98 dB |
SPL Max | 120 dB | 125 dB |
Dispersion | 90º x 45º (H x V) | -- |
Configuration | Passive column speaker array system | 15" active line array subwoofer (2.1 channel) |
Transducer | LF: 4 x 4", HF: 4 x 1" compression driver | LF: 1 x 15", HF: -- |
Impedance | 4Ω Nominal | 8Ω Nominal |
Power Handling | 2 x 125W RMS / 2 x 500W Peak |
400W + 2 x 250W RMS / 1600W + 2 x 500W Peak |
Enclosure Material | ABS | High-grade 100% birch plywood |
Mounting Options |
35mm mounting socket on the bottom |
35mm mounting socket on the top |
Finish | Paint | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
Amplifier | -- | Class AB amplifier, 2.1 channel |
Input | Speakon | 2 x XLR-1/4" combo (line input) |
Output | -- |
2 x XLR (thru line out), 2 x speakon + 2 x binding post (power output) |
Control | -- | -- |
Signal Processing | -- | 100-500 Hz LPF for the subwoofer, 80/100 Hz bass boost |
Voltage | -- | 100V-240V (50-60 Hz) |
Plate Amp Parts# | -- | STPA21-710 |
Low Frequency Woofer Parts# | -- | STLF-1270 |
Dimension & Weight
Model | CARPO-V4W | CARPO-15SWPW | STSD-48W-PAIR |
Product Width (in.) | 5.6" (each) | 18.9" | ∅1.4" (each) |
Product Height (in.) | 20.5" (each) | 22.0" | 37.0-47.6" (each) |
Product Depth (in.) | 5.2" (each) | 20.9" | --" |
Product Weight (lb.) | 10.8 lbs (each) | 93.0 lbs | 7.2 lbs |
Package Width (in.) | 23.4" |
23.8" |
4.7" |
Package Height (in.) | 8.7" |
25.2" |
38.0" |
Package Depth (in.) | 20.0" |
21.7" |
7.9" |
Package Weight (lb.) | 28.4 lbs | 97.5 lbs | 8.4 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
