CARME-110SPW-V5PW | Powered Column Speaker Line Array System w/ One 6 x 5” Column Speaker, One 10” Subwoofer for Live Music, Church, Restaurants










- DESCRIPTION
- FEATURES
- SPECIFICATIONS
- PACKAGE CONTENTS
- REVIEWS

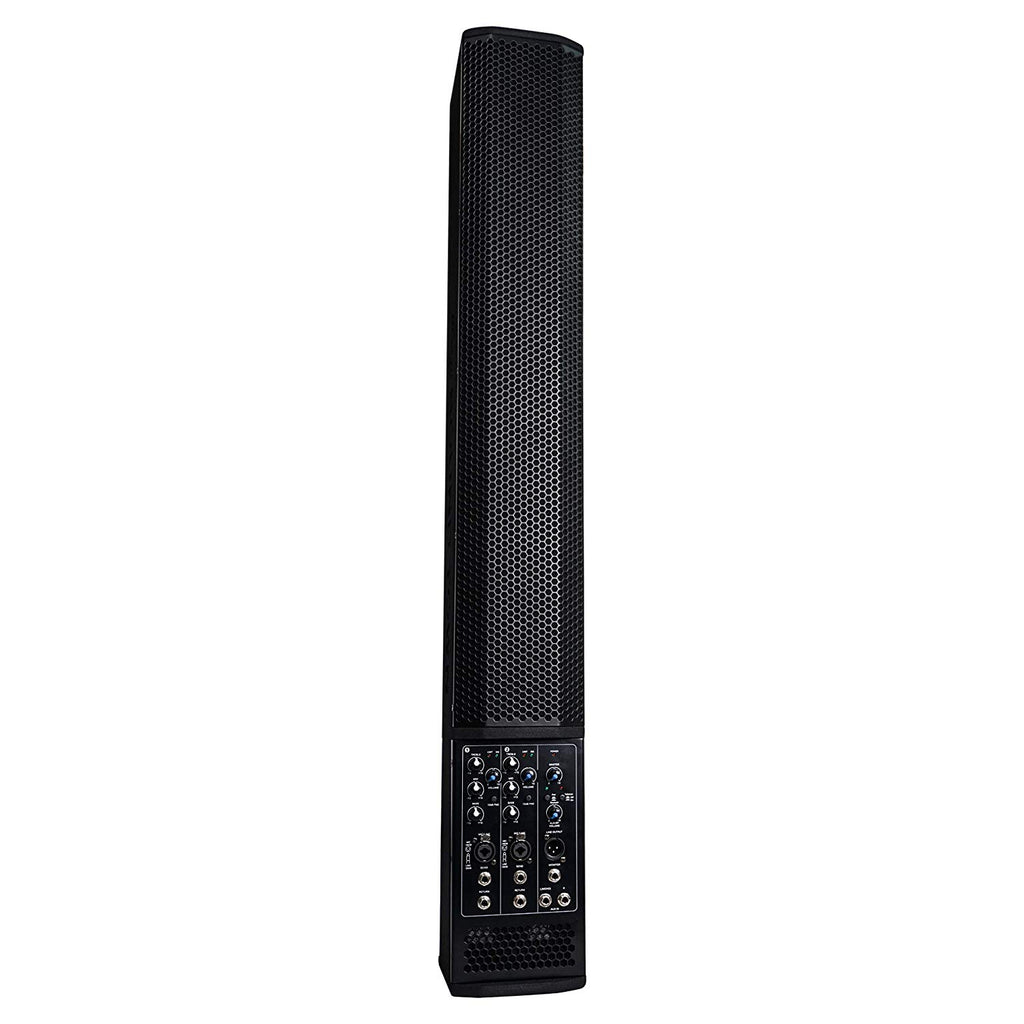

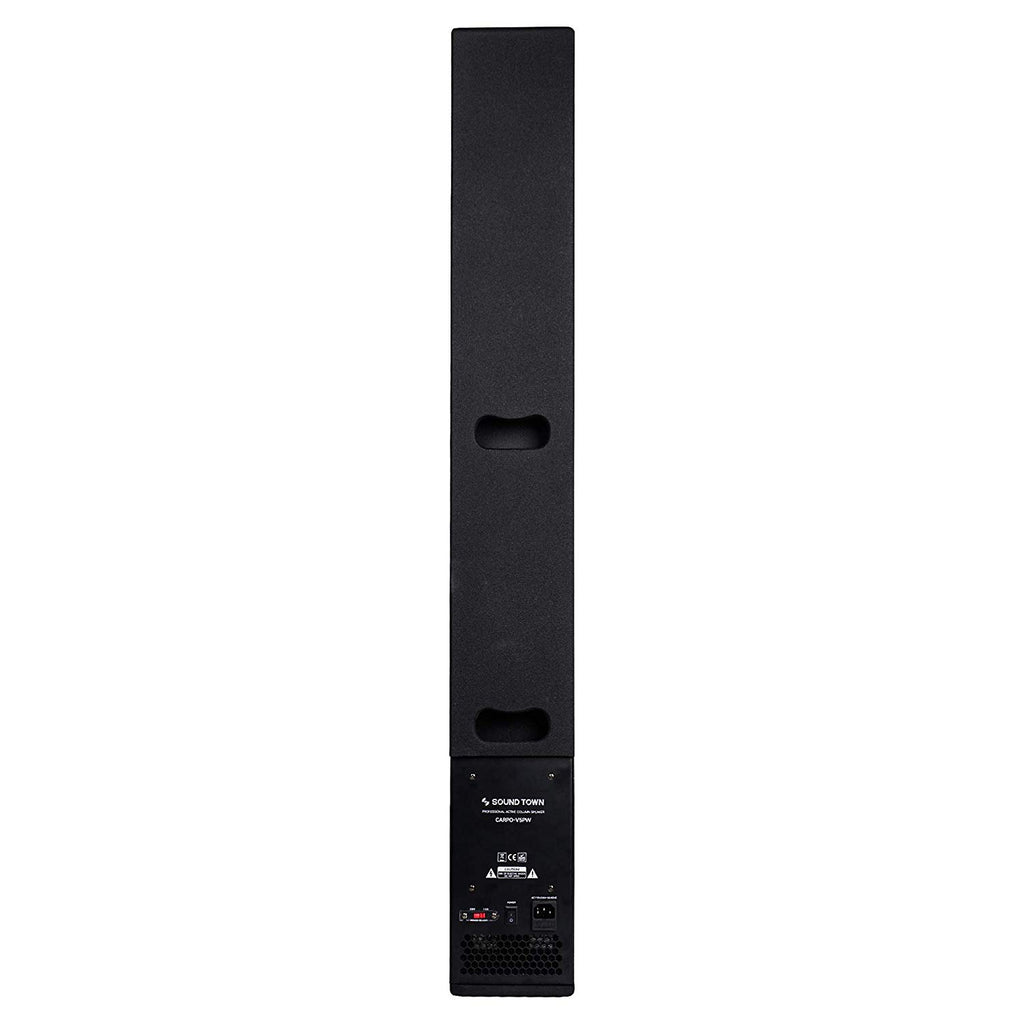

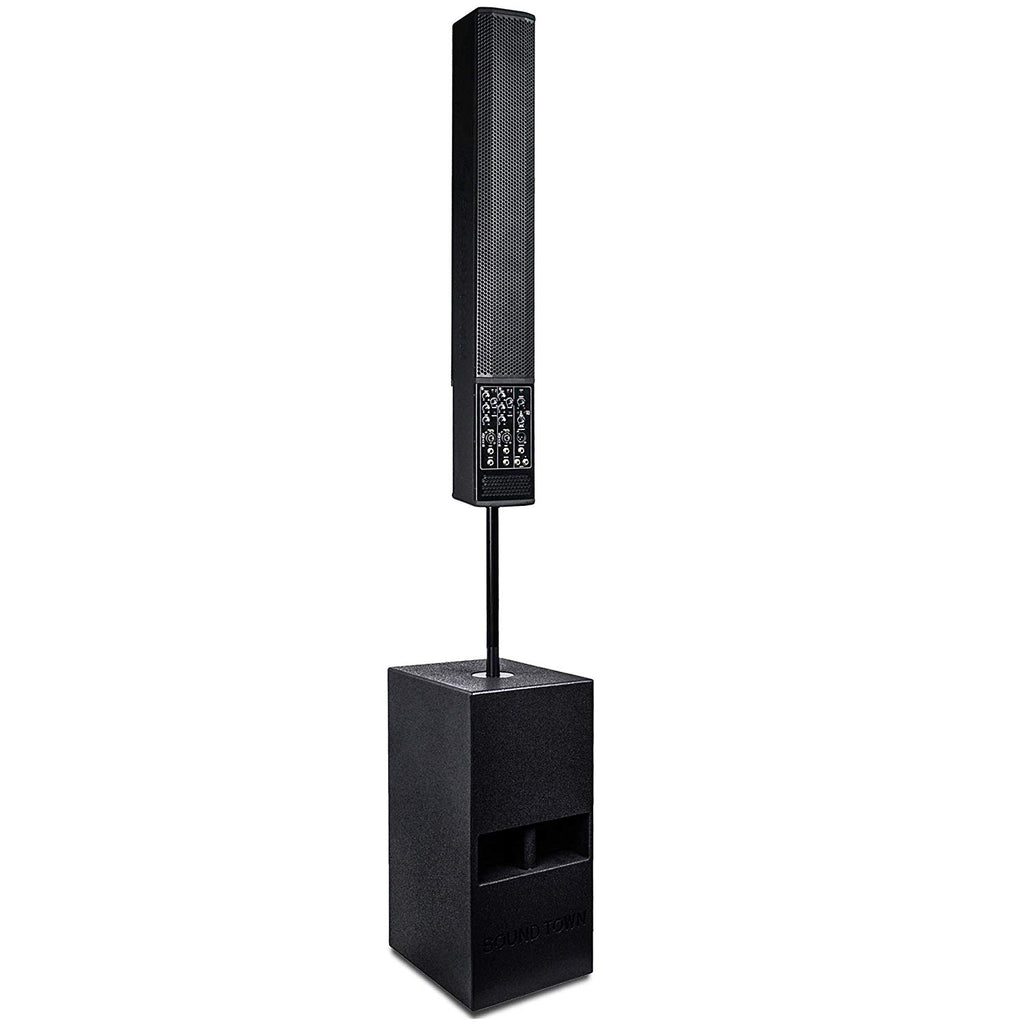

The Sound Town line array audio system includes 1 x CARPO-V5PW column speaker, 1 x STSD-20B subwoofer/speaker extender pole and 1 x CARME-110SPW powered subwoofer with folded horn design. The CARPO-V5PW is a compact powered column speaker line array system with six 5” woofers and one 1” dome tweeter. Powered by a Class-D amplifier, it generates 350W RMS, 700W peak output and provides crisp and balanced audio throughout any small to medium-sized venues. Thanks to the Class-D technology, the speaker weighs less than 28lbs and can be easily carried around. The CARME-110SPW subwoofer has a 10” subwoofer, handles 800W peak power and cranks out earth shaking bass and works perfectly with the column speaker.
The CARPO-V5PW’s onboard mixer allows you to take full control of your sound. It also comes with Bluetooth which enables you to stream your music wirelessly. The column speaker has 2-channel XLR-1/4" combo (line /mic) inputs, 1 x 1/4" signal return, 2 x 1/4" Aux input, Bluetooth and 2-channel 1/4" signal send (without EQ), 1 x 1/4" monitor output, 1 x XLR loop output. It can be easily connected with your PA gear. It is ideal for solo performance, live music and any small to medium-sized venues including church, school, meeting room and coffeehouse. To add earth shaking bass, this column speaker works perfectly with the Sound Town CARME-110SPW subwoofer (included in the package).
- SUPERB SOUND: The CARPO-V5PW has 6 x 5” woofers and 1 x 1” dome tweeter and delivers top-notch sound and wide coverage. With a built-in Class-D amplifier, it handles 350W RMS, 700W peak power output at 8-ohm and provides balanced and crisp audio throughout any small to medium-sized venues; The CARME-110SPW subwoofer has a 10” subwoofer, handles 600W peak power and cranks out earth shaking bass and works perfectly with the column speaker
- COMPACT AND LIGHTWEIGHT: powered by a Class-D amplifier, the CARPO-V5PW column speaker is designed for maximum portability without compromising sound quality and can be carried around easily

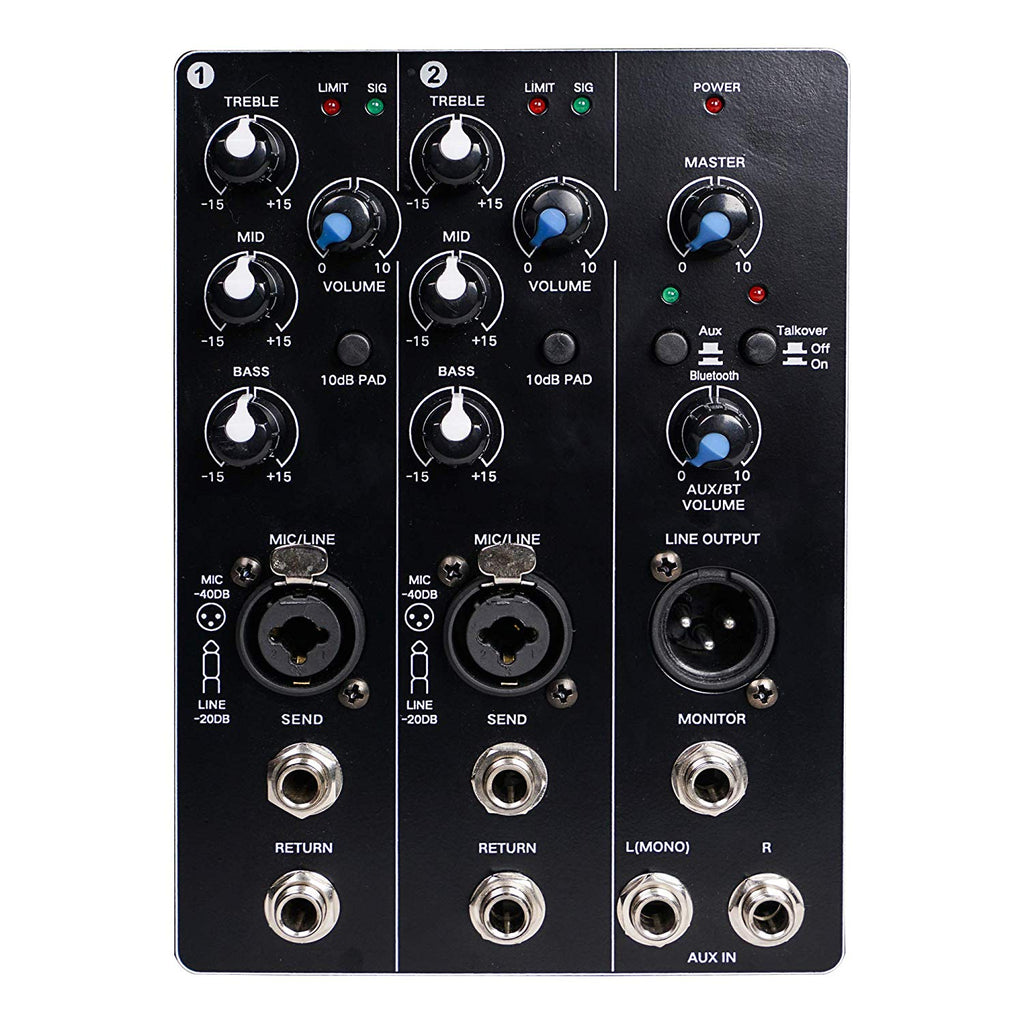

- EASY SETUP: with its fully addressable onboard mixer, the column loudspeaker allows you to take full control your sound. It comes with 2-channel XLR-1/4" combo (line /mic) inputs, 1 x 1/4" signal return, 2 x 1/4" Aux input, Bluetooth and 2-channel 1/4" signal send (without EQ), 1 x 1/4" monitor output, 1 x XLR loop output
- VERSATILE APPLICATIONS: The line array system is ideal for solo performance, live music and any small to medium-sized venues including church, school, meeting room and coffeehouse
Specifications
Model | CARPO-V5PW |
Active / Passive | Active |
Frequency Response | 70 Hz - 20 kHz |
Sensitivity | 97 dB |
SPL Max | 120 dB |
Dispersion | 90º x 60º (H x V) |
Configuration | 6 x 5" powered column speaker PA system |
Transducer | LF: 6 x 5" woofer, HF: 1 x 1" dome tweeter |
Impedance | 8Ω Nominal |
Power Handling | 350W RMS / 700W Peak |
Connectors | -- |
Enclosure Material | High-grade 100% birch plywood |
Mounting | 35mm mounting socket on the bottom |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier |
Input | 2-channel XLR & 1/4" combo (Mic/Line), 2 x 1/4" signal return, 2 x 1/4" aux, Bluetooth |
Output | 2-channel 1/4" signal send (without EQ); 1/4" monitor out, XLR loop out |
Control | 2-channel Volume, Aux/Bluetooth Switch, Aux/Bluetooth Volume, Master Volume, Talkover |
Indicator | Power, Signal, Limit |
Signal Processing | 2-channel Treble, Mid, Bass control, 10dB PAD |
Voltage | 100V-240V (50-60 Hz) |
Model | CARME-110SPW |
Frequency Response | 42 Hz - 180 Hz |
Sensitivity | 96 dB (Passive) |
SPL Max | 124 dB |
Dispersion | -- |
Configuration | 10" active subwoofer |
Transducer | LF: 1 x 10" |
Voice Coil | 2" |
Magnet | 65 oz |
Impedance | 8O Nominal |
Power Handling | 300 / 600W |
Connectors | -- |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Stand mount on top |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class AB |
Input | XLR, RCA line in |
Output | XLR line out |
Control | Volume, polarity, LPF |
Indicator | Power, clip |
Voltage | 100V-240V (50-60 Hz) |
Dimension & Weight
Model |
CARPO-V5PW | CARME-110SPW |
Product Width (in.) | 5.7" | 16.1" |
Product Height (in.) | 42.6" | 23.6" |
Product Depth (in.) | 6.7" | 11.8" |
Product Weight (lb.) | 39.6 lbs | 45.2 lbs |
Package Width (in.) | 9.4" | 19.1" |
Package Height (in.) | 45.7" | 27.0" |
Package Depth (in.) | 13.2" | 14.8" |
Package Weight (lb.) | 42.9 lbs | 53.7 lbs |
Warranty/Certifications
Manufacturer Warranty | 1 Year |
Package Contents
- (1) CARPO-V5PW Column Speaker
- (1) CARME-110SPW Powered Subwoofer with Folded Horn Design

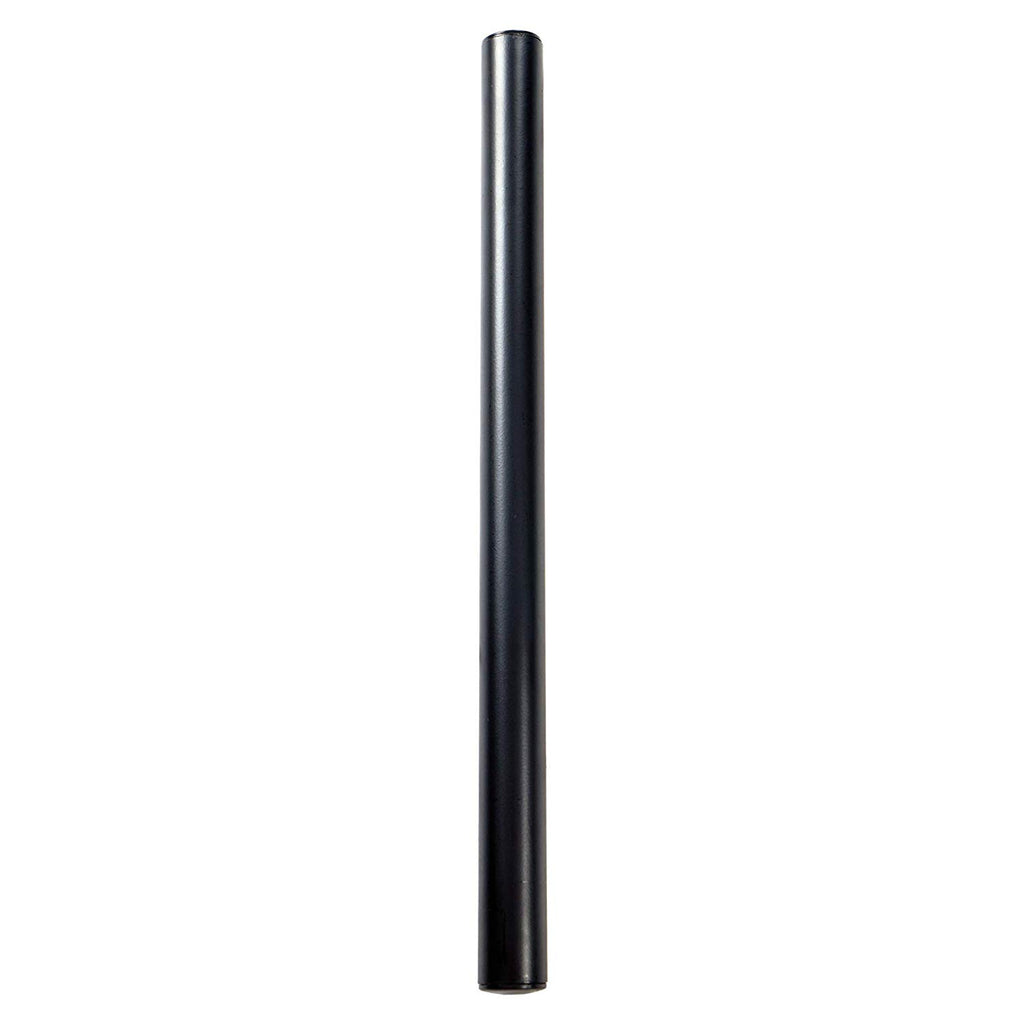

- (1) STSD-20B Subwoofer/Speaker Extender Pole
